JEOL Stub Storage Boxes

EM-Tec stub storage boxes for 9.5mm and 12.2mm JEOL cylinder stubs

Introduction

EM-Tec Hitachi M4 stub storage box and single storage tube

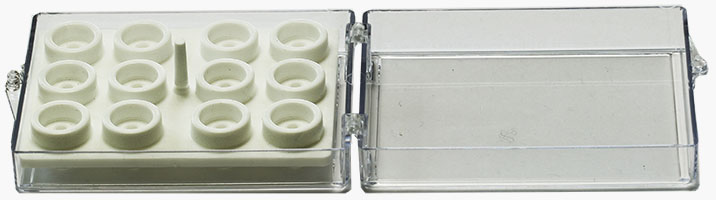

#AU-13-095012 EM-Tec SC12 clear combi styrene box

The EM-Tec JEOL stub storage boxes and are designed for storing SEM samples mounted on the 9.5mm and 12,2mm diameter JEOL cylinder stubs. They can be used for handling, long term storage, archiving and shipping SEM samples on smaller JEOL stubs and mounts. Currently available as storage boxes for 4 stubs and 12 stubs:

  • EM-Tec SJ4 clear styrene box with 4 storage positions for Ø9.5mm JEOL cylinder stubs. The stubs are held in the cavities of the LDPE insert. Post in the middle of the insert keeps the samples clear of the lid. Suitable for both the 5 and 10mm height and angled cylinder stubs. Maximum sample height is 4 to 9mm, depending on stub height.



  • EM-Tec SJ5 clear styrene box with 4 storage positions for Ø12.2mm JEOL cylinder stubs. The stubs are held in the cavities of the LDPE insert. Post in the middle of the insert keeps the samples clear of the lid. Suitable for both the 5 and 10mm height and angled cylinder stubs. Maximum sample height is 4 to 9mm, depending on stub height.



  • EM-Tec SC12 clear combi styrene box with 12 storage positions for either Ø9.5mm or Ø12.2mm JEOL cylinder stubs. The stubs are held in the cavities of the LDPE insert. Post in the middle of the insert keeps the samples clear of the lid. Suitable for both the 5 and 10mm height and angled cylinder stubs. Maximum sample height is 4 to 9mm, depending on stub height. Alternatively, the EM-Tec SC12 storage box can also be used for standard pin stubs.



Specifications of the EM-Tec JEOL cylinder stub storage boxes

Product #

Type

Material

Pin stubs capacity

Inside dimensions

Outside dimensions

AU-13-095004

SJ4

Polystyrene / LDPE

4 x Ø9.5mm

72x30x19mm           WxDxH

75x40x22mm

AU-13-095005

SJ5

Polystyrene / LDPE

4 x Ø12.2mm

72x30x19mm           WxDxH

75x40x22mm

AU-13-095012

SC12

Polystyrene / LDPE

12 x Ø9.5 or Ø12.2mm

89x65x25mm           WxDxH

100x69x29mm
