EM-Tec SEM stub gripper tweezers
special tweezers for SEM stubs and mounts

IntroductionEM-Tec SEM stub gripper tweezers

The EM-Tec SEM stub gripper tweezers are specially designed tweezers to securely grip SEM stubs and mounts. With the EM-Tec SEM stub gripper tweezers, the SEM sample stubs and mounts can be handled without touching them by hand. Ideal for clean handling and to avoid contamination issues.  The SEM stub gripper tweezers are all made from anti-magnetic stainless steel and are clean room compatible. The selection of the EM-Tec SEM stub gripper tweezers comprises gripper tweezers for.

  • grooved pin stubs with 12.7mm, 24.4, 19 and 32mm head diameter
  • JEOL cylinder stubs with 9.5, 12.2, 25 and 32mm diameter
  • Hitachi cylinder stubs with 15, 25 and 32mm diameter.

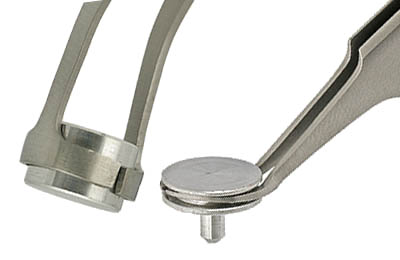

The EM-Tec SEM stub gripper tweezers tips for the grooved pin stubs fit directly in the groove of the SEM stub; the angle between tip and handle is 45°. The EM-Tec SEM stub grippers for the cylinder stubs are designed to grip the SEM cylinder stubs from above; the angle between tip and handle is 30°.

→ The SEM stub grippers can also be use to pick up a variety of other type of samples with similar diameters as the SEM stubs. Metallographic embedding of 25 and 30mm or 1” and 1-1/4” can be handled or used when etching the surface of the samples. Substrate discs can be picked up at the edge.



Specifications of the EM-Tec SEM stub gripper tweezers

Product #

Style

Material

Application

Tip angle

Length

AU-50-050012

127G.AM

Anti-magn, st.st.

Grooved pin stubs Ø12.7mm (1/2”)

45°

120mm

AU-50-050019

190G.AM

Anti-magn, st.st.

Grooved pin stubs Ø19mm (3/4”)

45°

120mm

AU-50-050025

254G.AM

Anti-magn, st.st.

Grooved pin stubs Ø25.4mm (1”)

45°

120mm

AU-50-050032

318G.AM

Anti-magn, st.st.

Grooved pin stubs Ø32mm (1-1/4”)

45°

115mm

AU-50-050110

95.AM

Anti-magn, st.st.

JEOL cylinder stubs Ø9.5mm

30°

114mm

AU-50-050112

122.AM

Anti-magn, st.st.

JEOL cylinder stubs Ø12.2mm

30°

120mm

AU-50-050150

150.AM

Anti-magn, st.st.

Hitachi and ISI cylinder stubs Ø15mm

30°

120mm

AU-50-050250

250.AM

Anti-magn, st.st.

JEOL and Hitachi cylinder stubs Ø25mm

30°

115mm

AU-50-050320

320.AM

Anti-magn, st.st.

JEOL and Hitachi cylinder stubs Ø32mm

30°

115mm
